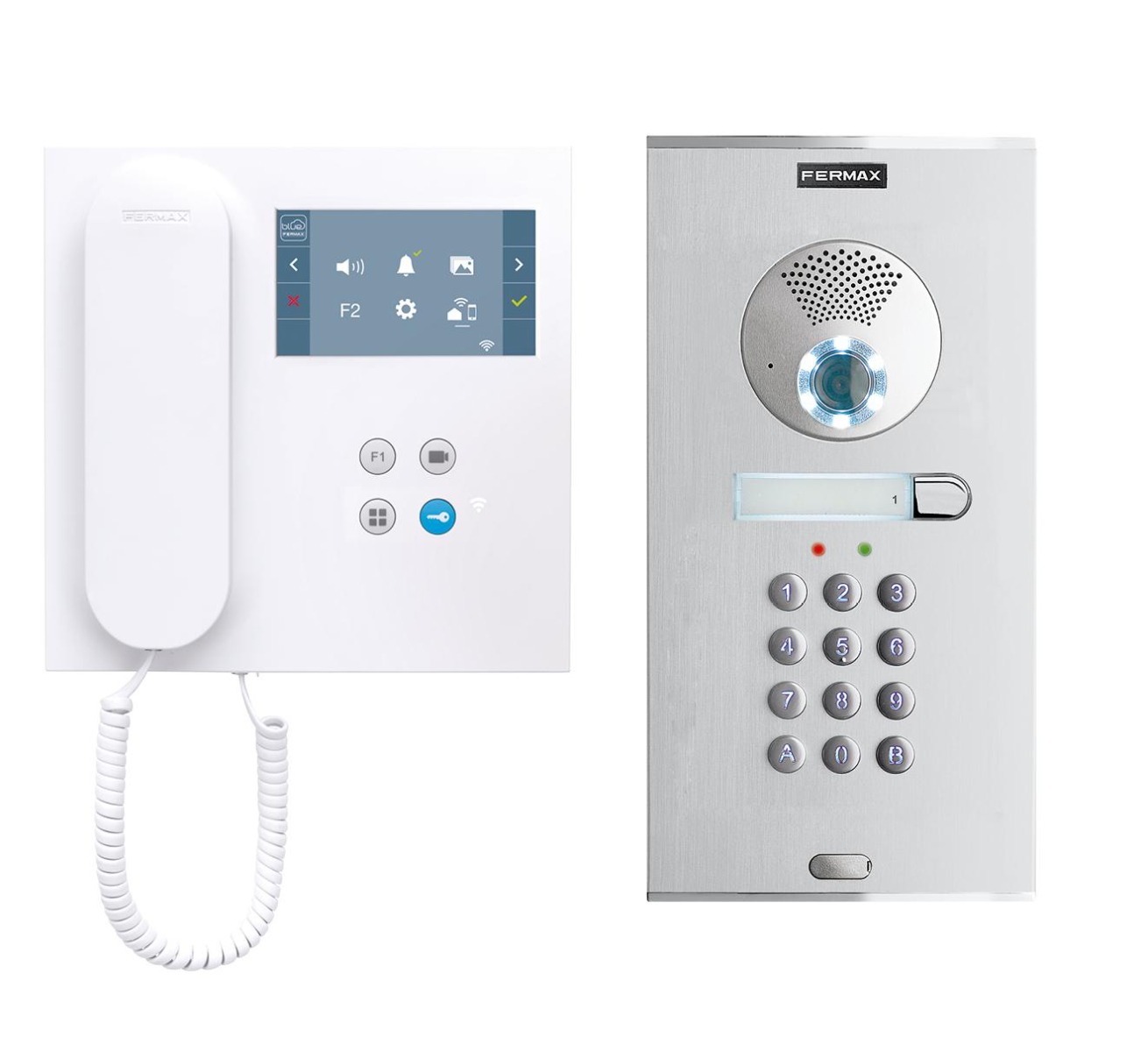

Fermax DSVK-01/V 1-Way DUOX+ Skyline Keypad Surface Kit with VEO Wi-Fi (LEAD TIME: 3-15 DAYS)

In addition, they work with DUOX PLUS, a fully digital door entry and video door entry system and technology on two non-polarized wires, which simplifies their installation while maintaining the highest quality in the product and design.

They include the VEO WIFI DUOX PLUS monitor as standard, equipped with a Wi-Fi connection that allows calls to be forwarded to mobile devices.

Thanks to the Fermax BLUE application, available for free in the Play Store and App Store, the video door entry functions can be managed directly from a mobile or tablet, to connect to your home, wherever you are. By connecting your WiFi DUOX PLUS monitorswith the BLUE app, a range of possibilities will open up. Of all of them we highlight two that will be key: Divert calls from the video door entry unit to your mobile and open the door to the house from a distance. They also come as a standard with the Photocaller function , which automatically captures an image of the caller. If the user decides to activate this function, the monitor stores up to 150 images, indicating the date and time when they were taken. When the maximum capacity has been reached, taking a new photo will erase the first one stored. The screen always indicates if there are photos not displayed or if the date / time are not configured.

The VEO WIFI DUOX PLUS monitor is made of high impact ABS plastic.

Includes a 4.3 ”widescreen color display (16: 9).

The unique and exclusive design of the handset incorporates a magnet that makes it easy for the user to position it, ensuring a correct hanging at the end of the conversation.

Its balanced design of pure lines is distinctive, modern and minimalist.

The entrance panel includes an integrated Memokey keyboard for opening the door by dialing a PIN code (up to 100 codes, 100 users).

DUOX PLUS is the new digital technology that exceeds all expectations. Because it makes the difficult easy.

Technical Details

Includes:

73881 MEMOVISION DUOX PLUS 1/L plate. S5:130×246.

8855 S5 built-in box: 115x233x45.

9446 VEO WIFI DUOX PLUS 4.3” Monitor.

9447 DUOX PLUS connector

4826 Power supp. unit+filter DIN6 24VDC-1.5A

4802 12Vac/1A Power Supply. DIN4

Video:

Sensor: 1/3″ color CMOS.

Effective pixels > 340K. (camera captures 720×480)

Minimum external lighting: 0 lux. Since it has LEDs, no additional lighting is required.

S/N >45dB.

Frame rate 25 fps.

Resolution > 368×288 pixels.

Video Codec: H264 Highline Profile

Auto iris.

Auto BLC.

Viewing angle 100º horizontal, 80º vertical.

Fisheye correction.

Color night vision through white LEDs.

Pan & Tilt digital zoom.
