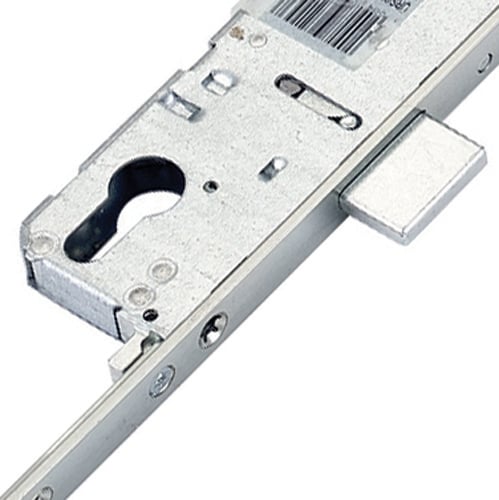

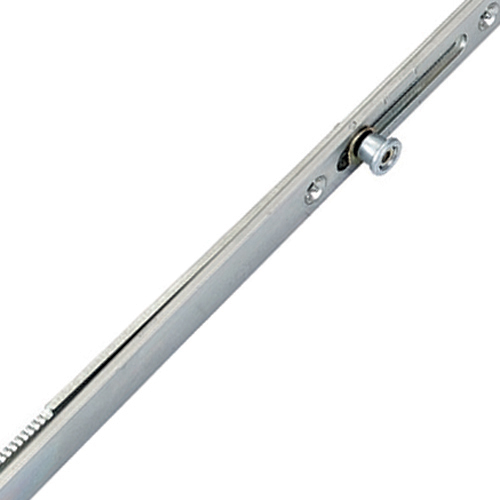

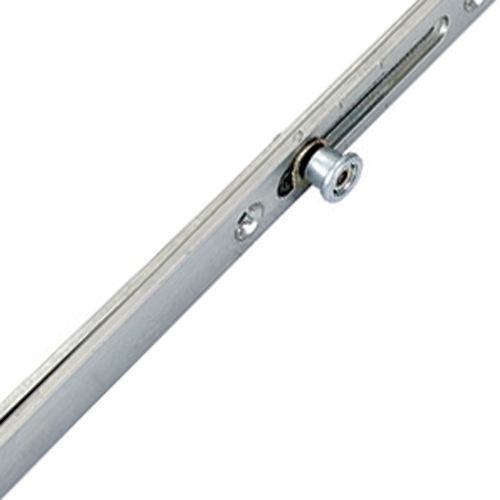

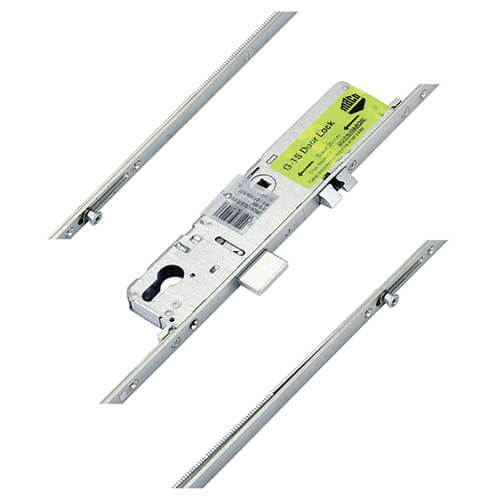

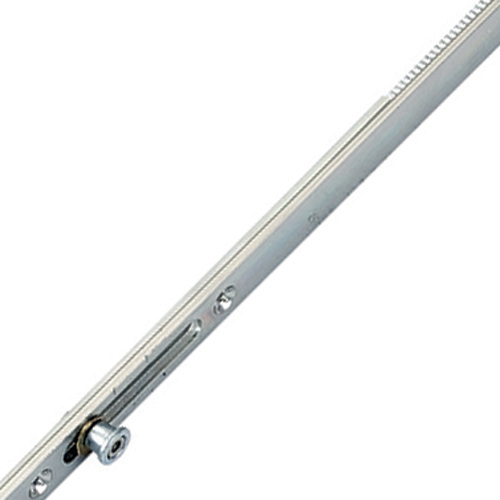

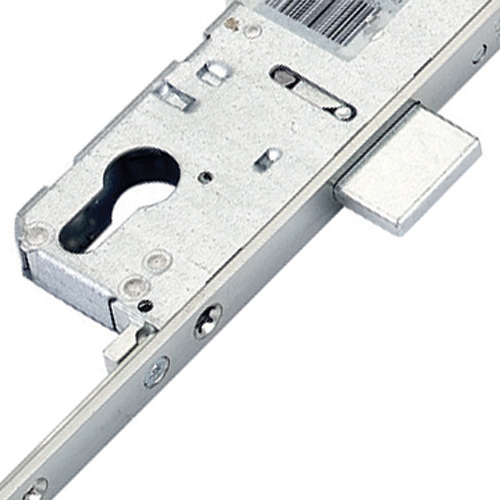

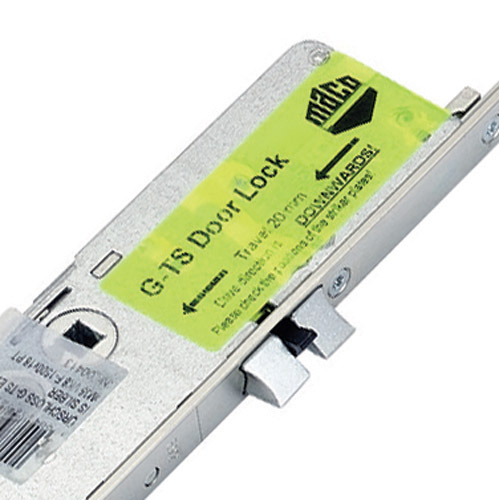

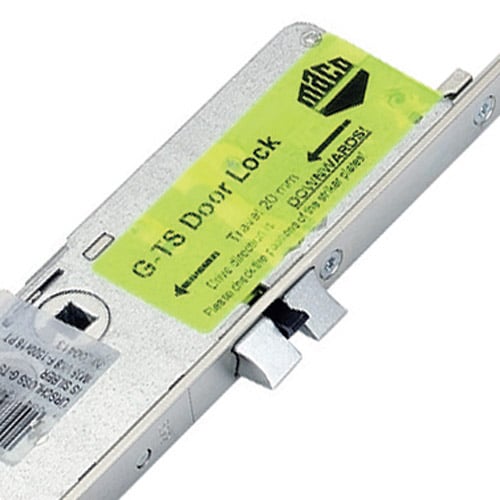

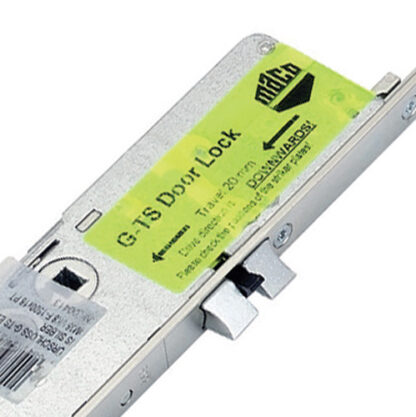

Maco G-TS Latch Deadbolt 2 Rollers Lift Lever Multipoint Door Lock – Extendable Version

SKU: MA51400config

Price range: £38.83 through £48.99 Out of stock

SKU: MA51400config Categories: , , Brand:

Description

This part is discontinued and is no longer available.

However, for part MA51400: G18206 is a potential alternative. The replacement for this 2 roller Maco G-TS lock features rollers in slightly different locations, so keeps will need to be moved. Shootbolts are not compatible so will also need to be replaced.

For part MA53401: G18203 is a potential alternative. The replacement for this 2 roller Maco G-TS lock features rollers in slightly different locations, so keeps will need to be moved. Shootbolts are not compatible so will also need to be replaced.

Additional information

Manufacturer

Maco

Discontinued

Yes

Backset

28mm, 35mm

Centres PZ

92mm

Faceplate

Flat 16mm – Square Ends

Spindle Size

8mm

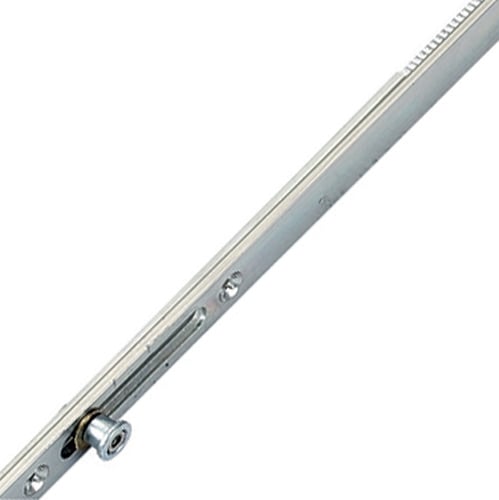

Rollers

2

Deadbolts

1

Main Gearbox

Latch and deadbolt

Operation

Lift Lever

Spindle

Single 8mm

1, 2 or 3 Piece

1

Handing

Non Handed

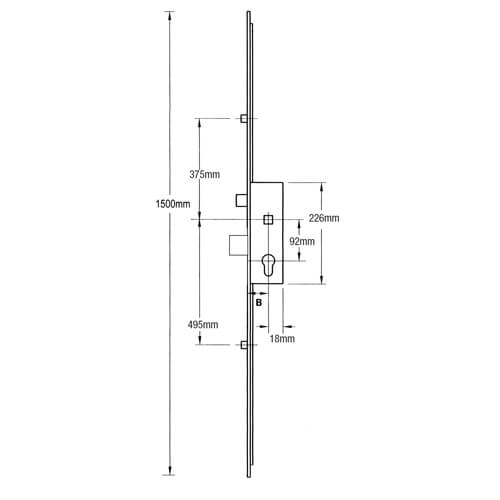

Distance Between Inner Locking Points

870mm

Height

1500mm

Top Roller To Spindle

375mm

Bottom Roller To Spindle

495mm
