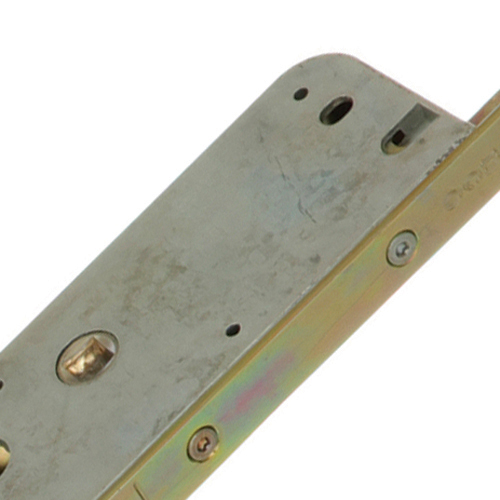

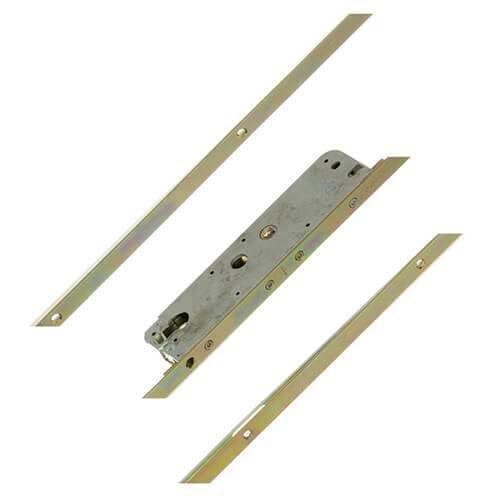

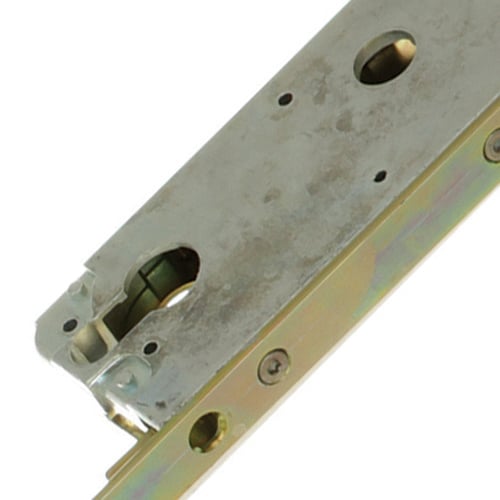

This Millenco Mantis 2 multipoint door lock features no locking points and is suitable for the passive door on a pair of French doors.
This Mantis 2 passive lock features 95mm centres and is for use on the slave door of a pair of French doors. Please note that shootbolts to suit this lock have been discontinued so please retain the original items.
Millenco Mantis 2 multipoint door locks are second generation Millenco locks. They feature unique measurements of 95mm and 65mm centres (PZ) and now form part of the Yale group of companies.
Mantis 2 multipoint locks are available 3 different variants: 3 hooks and 2 deadbolts, 3 hooks and 2 deadbolts with 2 rollers and passive lock version. Historically, these locks have been available with a 20mm faceplate, but they are now only available with a 16mm faceplate.
Identifying a Millenco Mantis 2 multipoint door lock is straightforward as it is the only lock on the market with a double spindle, 95mm and 65mm centres. This is the best way to ensure that you have the correct lock as early versions of these locks had no brand stamped on the faceplate.
Millenco Mantis 2 gearboxes are only available in one configuration and backset. The configuration is double spindle for lift lever or double spindle nightlatch operation. The only backset available is 35mm.

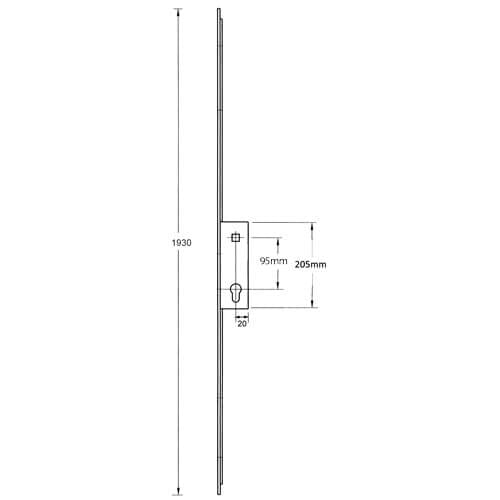

Mantis 2 gearboxes measure 205mm high by 55mm wide. They feature a central hook bolt that is 45mm high and a latch which measures 23mm high and projects 11mm.
Even though the faceplate can be unscrewed, a Mantis 2 gearbox cannot be swapped with a replacement as it is connected to the linkage rail that runs behind the faceplate.
Operation: Lift Lever
To lock the door
1. Lift the handle upwards to engage the locking points.
2. Lock the locking points and main deadbolt (if present) by turning the key.
To unlock the door
1. Unlock the system by turning the key.
2. Push the handle downwards to disengage the locking points and retract the latch.
We stock a range of associated products for Millenco Mantis 2 multipoint door locks, including keeps, spindles, handles and accessories.
Latch Reversal: Not applicable as this passive door lock is unhanded and does not feature a latch.
You may find this lock used as an UPVC door lock, an aluminium door lock, a timber multipoint door lock or a composite door lock .
