Airstrip 19000 ventilator, which offers built-in updraught facility and variable operating modes that deliver increased airflow capable of meeting Document F 2010 of building regulations. The Airstrip 19000 is installed between the head of the window profile and held in place by the glazing system.
Key features:
External hood as standard
Thermally broken / thermally insulated
Fitted with storm seal in internal flap. Storm locks available if required
Flap control offers two opening positions between fully open and fully shut
Permanent trickle (gas), knob, rod and cord operation available

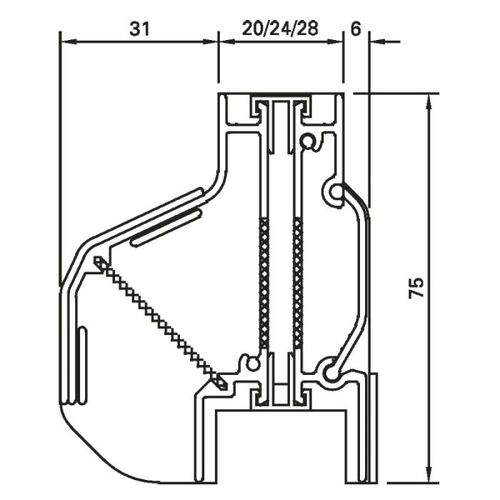

Suitable for double glazing thicknesses 20, 24, 28 and 32mm
Glass height reduction 64mm
Special colours and dual colours also available
Performance:
Tested to BS EN 13141-1:2004 achieves 12,931mm2 equivalent area
5000mm2 EA achieved on a length of just 386mm
2500mm2 EA achieved on a length of just 193mm
BS 5440-2:2000 compliant
Water tightness limit of 600pa
Acoustically tested to BS EN 20140-10:1992, ISO 140-10:1991
Components:

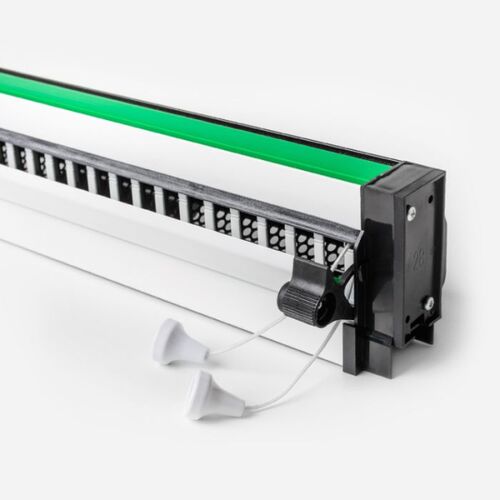

Two aluminium bodies assembled with thermal break, flap with knob controls at both ends (cord/rod control as optional), pair of end caps, 4 x screws, standard fly screen or gas fly screen, glass and ventilator gasket.
