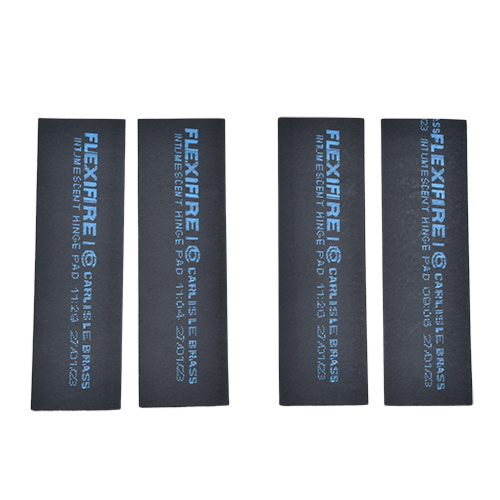

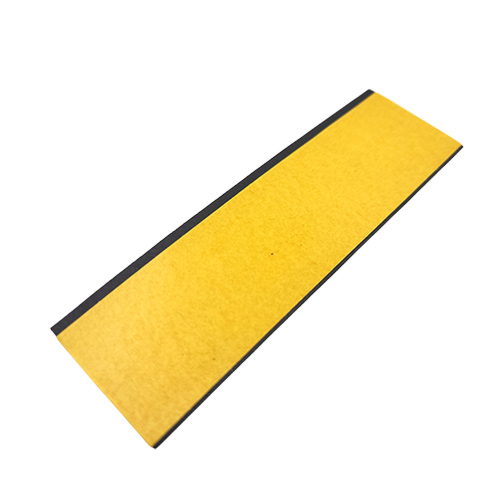

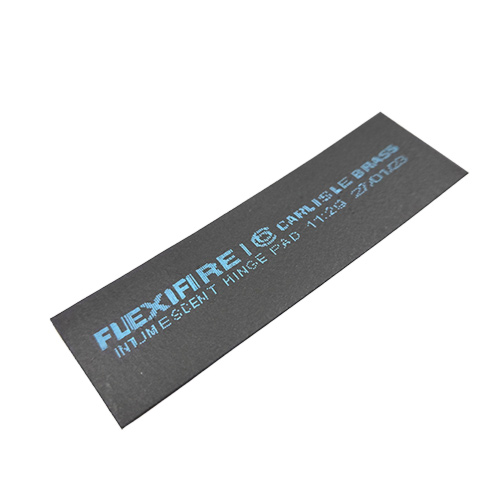

These TSS self-adhesive Intumescent Kits are pre-cut to suit the TSS Grade 13 Hinge Range.
For TSS Grade 13 Hinges use the below codes:
- Grade 13, 316 Stainless Steel = TSSHING3164X3
- Grade 13 = TSSHING134X3
- Grade 13 Radius = TSSHING134X3R
Intumescent Hinge Liners are designed to be fitted with Fire Rated Hinges in order to comply with FD30/60 Fire Regulations.
To Achieve FD30: One Intumescent Hinge Liner should be fitted to each leaf of the Hinge.
To Achieve FD60: Two Intumescent Hinge Liners should be fitted to each leaf of the Hinge.
The TSS Hinge Intumescent Kits are supplied in a Pack of 4 Liners. For FD30 x1 TSSHINGINTKIT would suit 1x Pair of Hinges, for FD60 x1 TSSHINGINTKIT would suit 1x Single Hinge.
TSS – Stock More For Less
TSS believes that quality doesn’t have to come with a high price tag. TSS provides high-quality products to the trade that meet specification requirements, all at an affordable price. TSS manufactures its products to high standards to ensure their products are an improvement on your current product choice.
